Eindex>> Product>> HD Laser Camera>> HD Integrated Night Vision Camera

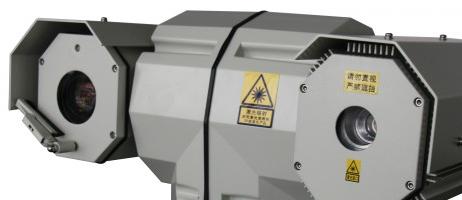

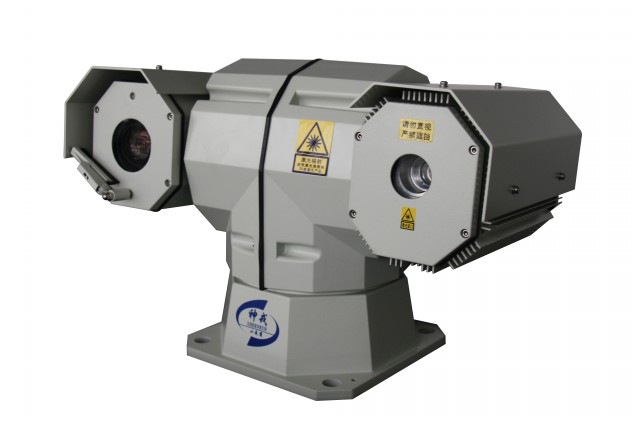

HLV311 HD Integrated Night Vision Camera

Product Features

● Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black

● Day&night low light megapixel color to black camera, day&night continuous monitoring

● Auto white balance, auto gain control, auto exposure control

● High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image

● Dual stream function, small time delay, fully satisfying different network bandwidth

● Fully supporting ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform home and broad

● Motion detection and alarm linkage, providing intelligent video monitoring application

● Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management

● Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power

● Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

Monitoring distance	Night vision	300meters
Monitoring distance	Day vision	600meters
Camera	Sensor	1/2.8" Progressive Scan CMOS
	Total pixels	2.1MP
	Lens focal length	f=4.7~94mm,20* optical zooming
	Lens aperture	F1.6~3.5
	Min light	0.05Lux(color),0.01Lux(black and white)
	Electronic shutter speed	Auto and manual adjustment
	Camera control	Auto gain control, auto white balance, auto backlight compensation; supporting manual and auto day and night mode switch
Video coding	coded format	H.264
	Video resolution	1920x1080
	Bit rate	64Kbps~4Mbps
	Frame rate	1~25F/S(50Hz),1~30F/S(60Hz)
	Subtitle overlay	station logo, date, time
	Image adjustment	brightness, contrast, saturability
	Supporting protocol	TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、 SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、 HTTPS、IPv6 (SIP、SRTP optional)
Illuminator	Power	5whjhvb
	Wave length	810nm
	Illuminating angle	2°~50°synchronous servo continuous adjustment
	Homogeneous light	LCMM homogenous technology
Pan-tilt	Angle	Horizontal 360°continuous rotation,pitching:-90°~+90°
	Speed	Horizontal 0°~80°/s,pitching 0°~60°/s
	Preset bit	Max 256
	Cruising function	6 paths
Interface	Network interface	1×10Base-T/100Base-TX,RJ45
	Power supply interface	1×AC 24V socket,for external power adapter
	Audio interface	1×Line In,1×Line Out
	Alarm interface	1 switch input,1 switch output
Environmental indicators	Working temp	-25℃~+55℃
	Storage temp	-40℃~+65 ℃
	Protecting grade	IP66
	Anti-vibration	10~55Hz,2m/s²,0.75mm
	Anti-impact	150m/s²,11ms
	Anti-salt fog	continuous spraying for 48 hours at PH 6.5-7.2,surface with no changes
Power supply	Working power supply	AC 24V±5% /2.5A,please use the appendant power supply
Power supply	Power consumption	≤60W
Physical features	size	240mm×374mm×243mm
Physical features	Weight	8Kg
Others	Application function	Real time clock;supporting manual capturing image and manual videoing
Others	Configuration	Supporting configuration management and video browsing through WEB;Provide access to platform(NVR) to conduct parameter configuration and operating state management, supporting ONVIF2.0、GB28181
